Basic Data

• Load Capacity 50kg to 300kg

• Up to 3 access sides

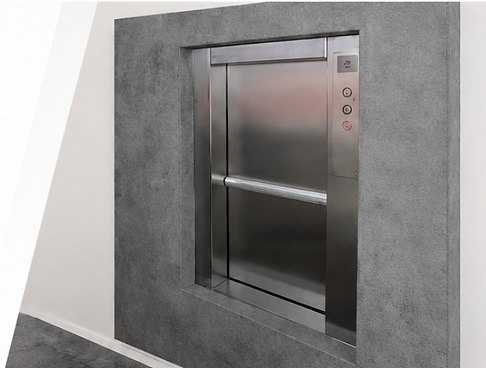

• With vertical bi-parting doors at serving level

• Motor arrangement at the top, side or bottom of the shaft

• Nominal speed up to 0.45 m/s

• With safety gear for accessible spaces under the shaft

Basic Equipment

• Car and landing doors with Zintec steel for individual colouring

• Hot-dip galvanised shaft structure for installation in an on-site shaft

• Short assembly times due to pre-assembled components

• Drive with compact worm gear

• Microprocessor control completely pre-wired and pluggable in 24 volt technology

• Call and send control

• Call acknowledgement, arrival signal and position indicator

• Diagnostic system

Optional

• Up to 30 stops

• Head up to 120m

• Nominal speed up to 1.0m/s

• Fire doors based on EN 81-58

• Car closure or load restraint

• Frequency control

• Floor and underfloor heating

• LED car lighting and LED shaft lighting
