SCREW DRIVE
PLATFORM LIFT
Safe and Efficient Transport

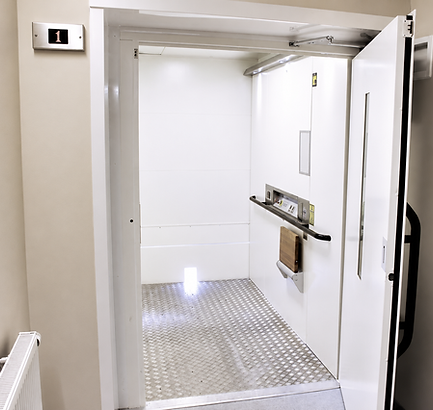

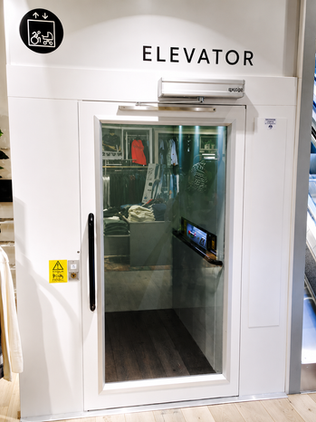

Introducing the Screw Drive Platform Lift, offering increased capacity, better accessibility and a robust and reliable design. The lift is designed with the flexibility to fulfil individual requirements and fit in to both new and existing buildings serving up to 6 different levels and a maximum travel of 13m.
We offer a range of platform sizes, for options within healthcare, retail facilities, schools and other venues, that may need to accommodate larger or heavier loads. The increased platform size is complimented by the option of having landing doors that measure up to 1300mm wide, allowing for increased access to the platform for loads such as beds and larger powered wheelchairs.
Speak to an expert
0330 520 2319
SPACE-SAVING DESIGN
SAFE & RELIABLE
BUILT TO LAST PERFORMANCE
VERSATILE FOR MANY INDUSTRIES
Features
-
13 metres maximum travel serving 6 levels
-
1,000kg capacity
-
110mm deep pit
-
Doors can be fitted on 3 sides, either hand
-
0.15 metres/sec travel speed#
-
Energy saving LED lighting in ceiling
-
415v operation soft start and stop
-
Single press operation on landing call buttons
-
Constant pressure tactile pushes on platform
Optional
-
Mixture of glazed and steel shaft panels available
-
Special platform sizes available
-
Automatic door openers
-
1,300mm wide landing doors
-
RAL colours
-
Key switch operation
-
Emergency autodialler or intercom
Notes
The lift complies with Class III Health Care regulatory sizes, making it the ideal solution for transporting beds and their attendants in care homes and similar care facilities. To assist with entering and exiting the lift, there is the option of a hold open facility, which makes transporting larger, more challenging loads a lot easier.
All of this, added to the benefit of just a 110mm recess in the lower floor, make the lift the most flexible and cost effective vertical platform lift on the market.
