Semi-Automatic Goods Transport
BKG
SEMI-AUTOMATIC

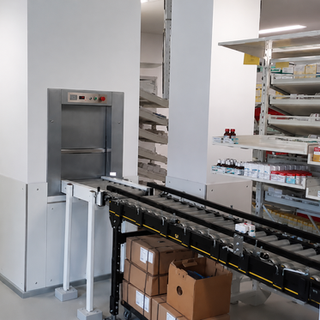

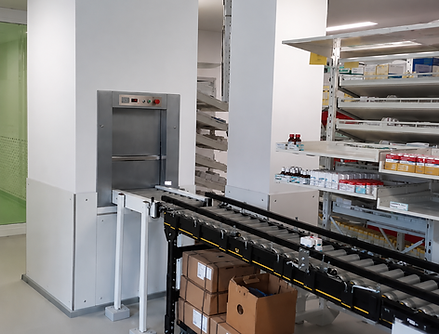

The Semi-Automatic lift enables container transport with manual loading—place the container on the roller conveyor, choose the destination, and the system handles the rest.
Automatic infeed, positioning, and unloading onto destination conveyors ensure a smooth, efficient material flow.
Speak to an expert
0330 520 2319
SPACE-SAVING DESIGN
SAFE & RELIABLE
BUILT TO LAST PERFORMANCE
VERSATILE FOR MANY INDUSTRIES
Basic Data
-
Load Capacity 20kg
-
One sided or through loading
-
Vertical bi-parting doors with individual drives
-
Car with conveyer belt
-
Unloading conveyers in front of each landing door as gravity roller conveyers
-
Engine arrangement at the top, side or bottom of the shaft
-
Nominal speed 0.3 to 1.0 m/s frequency controlled
-
With safety gear for accessible spaces under the shaft
Basic Equipment
-
Car and landing doors electrolytically galvanised for individual colouring
-
Hot-dip galvanised shaft structure for installation in an on-site shaft
-
Short assembly times due to pre-assembled components
-
Drive with compact worm gear
-
Siemens S7-1200 control completely pre-wired and pluggable in 24 volt technology
-
Frequency inverter KEB
-
Call acknowledgement, arrival signal and position indicator
-
Diagnostic system
Optional
-
Up to 30 stops
-
Head up to 120m
-
Nominal speed up to 1.0m/s
-
Fire doors based on EN 81-58
-
LED car lighting and LED shaft lighting
-
Materials and surfaces according to customer requirements
-
Special functions and displays
-
Special solutions for reduced shaft conditions
-
Special car dimensions
