The Perfect Pairing
COMBI LIFT

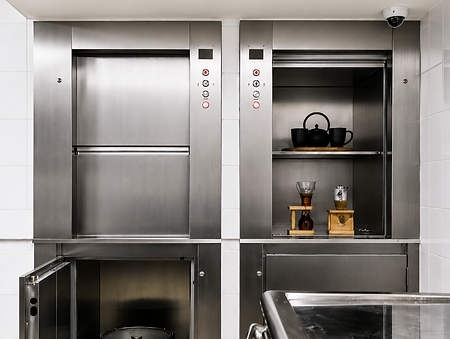

The Combi Lift brings together the best of the Classic Dumbwaiter and Trolley Lift into one intelligent lift solution. Its smartly designed divided cabin offers dual functionality—access the upper section via vertical sliding doors, while the lower section features a single hinged door.
Move different items simultaneously with total efficiency—food in the upper section, bulkier loads like drinks crates below. One lift, delivering double the functionality.
Speak to an expert
0330 520 2319
SPACE-SAVING DESIGN
SAFE & RELIABLE
BUILT TO LAST PERFORMANCE
VERSATILE FOR MANY INDUSTRIES
Basic Data
-
Load Capacity 100kg to 300kg
-
Up to 3 access sides
-
With combination doors
-
Motor arrangement at the top or side of the shaft
-
Nominal speed up to 0.3 m/s
-
With safety gear for accessible spaces under the shaft
Basic Equipment
-
Car and landing doors with Zintec steel for individual colouring
-
Hot-dip galvanised shaft structure for installation in an on-site shaft
-
Short assembly times due to pre-assembled components
-
Drive with compact worm gear
-
Microprocessor control completely pre-wired and pluggable in 24 volt technology
-
Call and send control
-
Call acknowledgement, arrival signal and position indicator
-
Diagnostic system
Optional
-
Up to 30 stops
-
Head up to 120m
-
Nominal speed up to 1.0m/s
-
Car closure or load restraint
-
Frequency control
-
Floor and underfloor heating
-
LED car lighting and LED shaft lighting
-
Overload protection
-
Materials and surfaces according to customer requirements
-
Special functions and displays
-
Intercom systems
-
Water/dust protection (IP)
-
Special solutions for reduced shaft conditions
-
Special car dimensions
