CHAIN DRIVE
CABIN LIFT
Silent and Safe
Designed to provide reliable vertical transportation without compromising on space, this lift combines silent and safe operation with exceptional efficiency and modern design. The lift’s clean, contemporary look allows it to complement a wide range of environments, creating a smart addition to any building.
Its extremely space-efficient construction makes it an ideal solution where floor space is limited, while its low maintenance requirements help keep ongoing costs and disruption to a minimum.
Speak to an expert
0330 520 2319
SPACE-SAVING DESIGN
SAFE & RELIABLE
BUILT TO LAST PERFORMANCE
VERSATILE FOR MANY INDUSTRIES
Features
-
Max 440kg capacity
-
Stops: 2-6
-
European Machine directive 2006/42/EC European Standard EN 81-41
-
Guided chain system
-
Speed 0.15m/s
-
Swing door 900 x 2,000mm
-
Headroom 2,200mm above top landing
-
Single phase 230-240V 10 A
-
Self-supporting structure
-
Pit depth 70mm or ramp
-

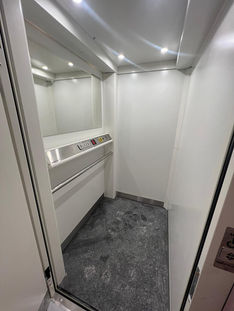

Fully enclosed cabin with automatic sliding door
-
Automatic emergency lowering
-
Battery-powered alarm system
- LED lights in cabin ceiling
- Stainless steel handrail
-
Control cabinet integrated on top door frame
Optional
-
2-way auto-dialler
-
Sizes available:
-
1,250mm x 1,560mm
-
1,250mm x 1,760mm
-
-
Doors:
-
Doors can be fitted on two sides of the shaft (A - C)
-
Automatic operation
-
Right or left-hand opening
-
Certified fire doors available
-
-
Shaft walls with steel panels:
-
Aluzinc steel
-
Powder coated white (RAL9010) as standard
-
Glazing on 4 sides avauilable
-
-
Cabin:
-
Glazing on two sides
-
If door on C - side glazing only possible on one side (drive side)
-
Notes
-
Environmentally friendly:
-
More energy efficient than other platform lifts
-
Lifetime oil in gearbox
-
95% recyclable
-
